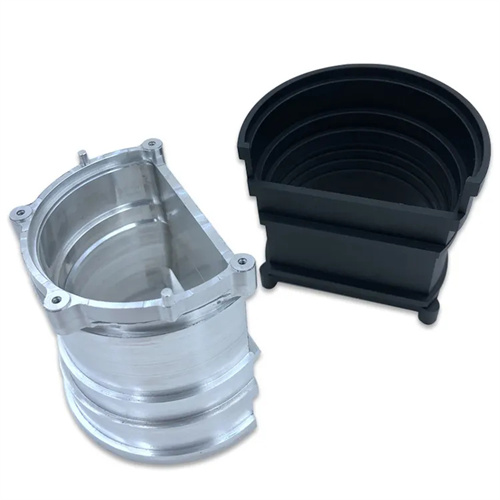

Workholding Solutions for Thin-Wall Aluminum Alloy CNC Turning
Effective workholding is critical to preventing deformation in thin-wall Aluminum Alloy CNC Turning, where even minimal clamping forces can distort delicate components. We use specialized low-pressure chucks with 6-jaw designs that distribute clamping force evenly across the workpiece perimeter, reducing radial pressure by 40–60% compared to standard 3-jaw chucks. These chucks feature soft jaws machined to match the part’s outer contour, ensuring uniform contact that prevents localized deformation in walls as thin as 0.5mm. For longer components, we implement adjustable steady rests with polyurethane pads that provide support without marring surfaces during Aluminum Alloy CNC Turning. Vacuum chucks are employed for non-circular thin-wall parts, using atmospheric pressure to secure workpieces with minimal mechanical stress. We also use temporary support structures, such as water solubility mandrels, for internal turning operations on hollow components. Each workholding solution is validated through finite element analysis (FEA) to ensure clamping forces remain below the aluminum alloy’s yield strength, preserving dimensional integrity in precision thin-wall CNC turned parts.
Toolpath Optimization in Thin-Wall Aluminum Alloy CNC Turning
Strategic toolpath planning minimizes deformation in thin-wall Aluminum Alloy CNC Turning by reducing cutting forces and residual stress. We use high-speed, light-cutting strategies with multiple shallow passes (0.1–0.3mm depth) instead of deep cuts, distributing thermal and mechanical stress evenly across the workpiece. Our CNC programs employ climb turning for most operations, which reduces tool pressure on thin walls compared to conventional turning. For internal diameters, we machine from the inside out, gradually expanding the cavity to relieve internal stresses that cause warping. We implement radial step-down patterns that alternate cutting directions, balancing residual stresses in the aluminum material. Toolpaths are designed to maintain constant chip load, preventing sudden force spikes that would deflect thin walls during Aluminum Alloy CNC Turning. For complex geometries with varying wall thicknesses, we use adaptive toolpaths that adjust feed rates based on wall thickness, reducing forces on the most delicate sections. This toolpath optimization ensures cutting forces remain below 50N for walls thinner than 1mm, preventing measurable deformation in precision components.
Cutting Parameter Selection for Thin-Wall Aluminum Alloy CNC Turning
Selecting appropriate cutting parameters is essential to minimizing deformation in thin-wall Aluminum Alloy CNC Turning. We use higher spindle speeds (4,000–8,000 RPM) combined with lower feed rates (0.05–0.15 mm/rev) to reduce cutting forces while maintaining efficient material removal. This combination creates smaller, more manageable chips that generate less heat and pressure on thin aluminum walls. Cutting speeds are optimized for specific alloys—1,500–2,500 SFM for 6061 aluminum and 1,200–2,000 SFM for harder 7075 alloys—to balance tool life with deformation risk. We limit depth of cut to 10–20% of wall thickness per pass, with final finishing passes as shallow as 0.05mm to minimize residual stress. Coolant pressure is reduced to 20–30 bar for thin sections, preventing coolant-induced deflection while still providing adequate heat dissipation. Our parameter libraries include alloy-specific settings that account for differences in machinability, ensuring 6061 components can tolerate slightly higher forces than 7075 in Aluminum Alloy CNC Turning without deformation. These parameters balance productivity with precision, achieving tight tolerances (±0.01mm) on walls thinner than 1mm.
Tool Geometry for Deformation-Free Aluminum Alloy CNC Turning
Tool geometry directly influences cutting forces and surface quality in thin-wall Aluminum Alloy CNC Turning, making it a critical factor in deformation prevention. We use carbide inserts with large positive rake angles (15°–25°) that reduce cutting pressure by minimizing material resistance, essential for turning walls thinner than 1mm. The tool nose radius is carefully selected—0.2–0.4mm radii for finishing operations—to balance surface finish quality with cutting force reduction. We employ sharp cutting edges with minimal hone (0.005–0.01mm) to shear aluminum cleanly without tearing, reducing the energy transferred to thin walls during Aluminum Alloy CNC Turning. Tool holders are designed with minimal overhang (≤2× tool diameter) to maximize rigidity, preventing deflection that would cause variable wall thickness. For internal turning, we use slim-profile tools with reinforced shanks that maintain strength despite reduced cross-section. Each tool is inspected for runout (held below 0.01mm) before use, ensuring consistent cutting action that prevents uneven material removal and associated deformation. This tool geometry optimization minimizes the mechanical stress that causes distortion in thin-wall aluminum components.
Stress Relief Strategies in Aluminum Alloy CNC Turning
Implementing stress relief techniques throughout Aluminum Alloy CNC Turning prevents accumulated residual stresses from causing post-machining deformation in thin-wall components. We perform intermediate stress relief cycles after roughing operations, heating aluminum parts to 120–180°C for 30–60 minutes to release internal stresses before finishing. This process reduces post-machining warpage by 50–70% in alloys like 6061-T6. Our CNC programs include dwell periods between passes, allowing the workpiece to cool and stabilize before additional material removal. We use cryogenic treatment (-80°C) for critical components after machining, which relieves residual stresses through controlled thermal contraction. For high-volume production, we integrate vibratory stress relief into the manufacturing process, using low-frequency vibrations to relax aluminum microstructures without thermal effects. We also machine thin walls with a slight oversize tolerance, allowing for final light passes (0.05mm) after stress relief to correct any minor deformation. These strategies ensure thin-wall aluminum CNC turned parts maintain dimensional stability long after the machining process is complete.
Inspection and Measurement for Thin-Wall Aluminum Alloy CNC Turning
Precise inspection methods verify dimensional accuracy and detect deformation in thin-wall Aluminum Alloy CNC Turning components. We use coordinate measuring machines (CMMs) with tactile probes that apply less than 0.1N of force, preventing deflection during measurement of walls as thin as 0.3mm. Laser scanning systems capture 3D surface data without physical contact, creating detailed deformation maps that identify areas of warpage or uneven wall thickness. Our quality control process includes checking critical dimensions immediately after machining and again after a 24-hour stress relief period, documenting any post-machining movement. We use optical comparators with backlighting to inspect wall straightness, ensuring deviations remain below 0.01mm per 100mm length. For internal diameters, we employ air gages that measure with 0.1μm resolution, detecting ovality or taper that indicates deformation. Statistical process control (SPC) tracks deformation trends across production runs, allowing us to adjust Aluminum Alloy CNC Turning parameters proactively. This comprehensive inspection ensures thin-wall aluminum components meet strict dimensional requirements despite their susceptibility to deformation.
